The software

Eight steps, from the last to the printed pattern, in the app as it is.

01The last, measured

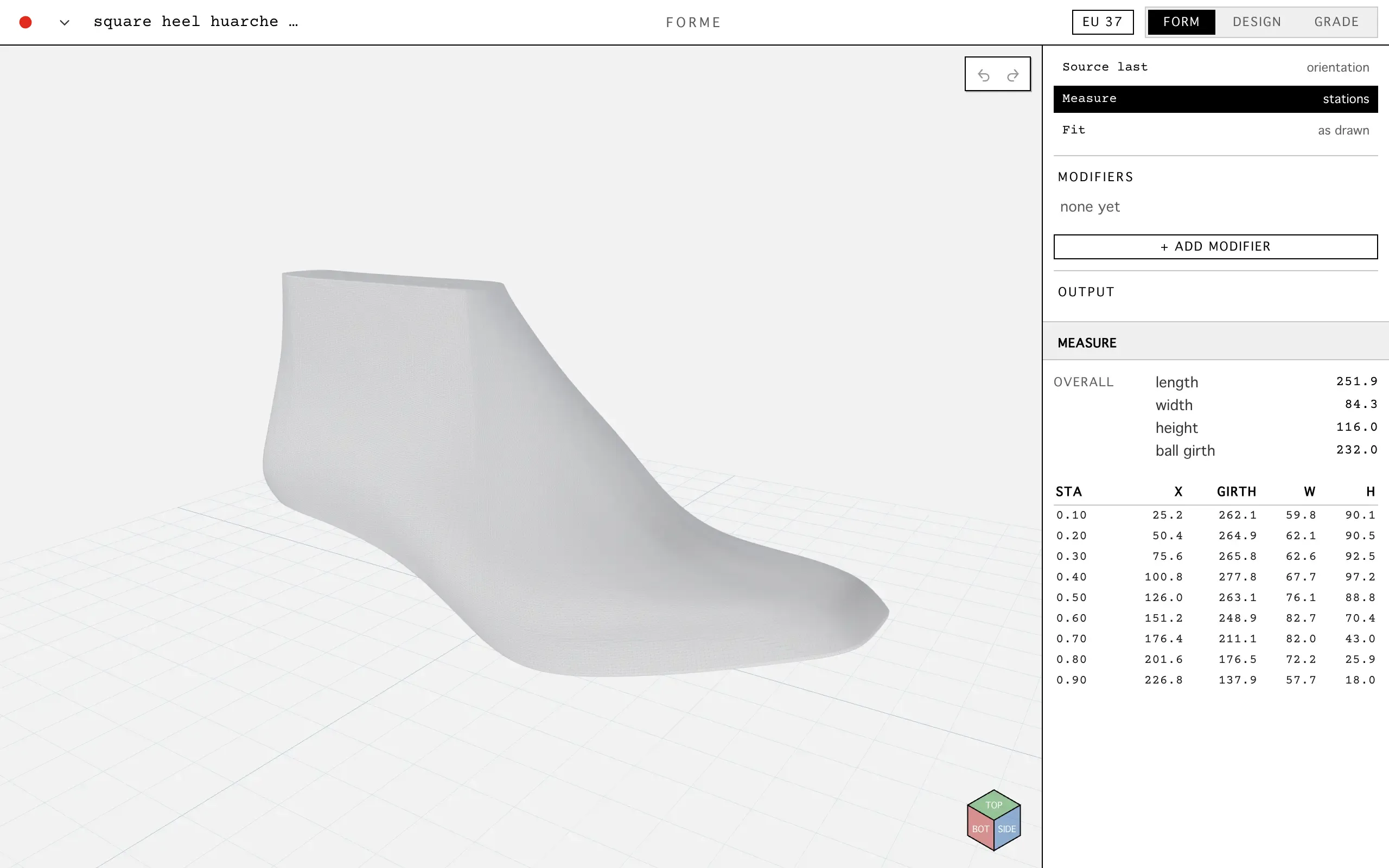

FORME with a last open in Form, its stick length, girths and stations listed beside it
02The pieces, drawn

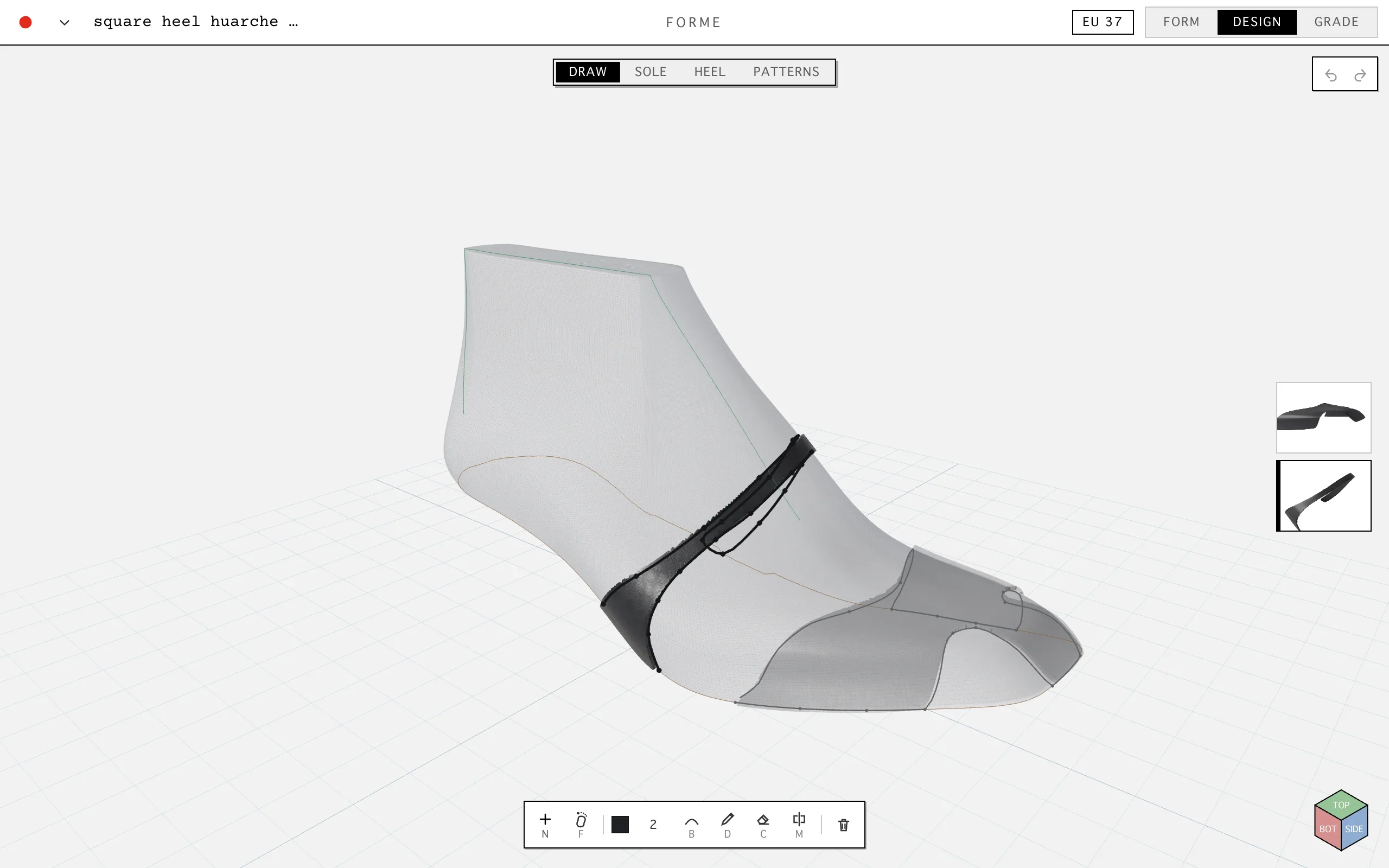

The pieces of the upper drawn on the last in Draw, one of them picked with its marks and the pen
03The foot inside

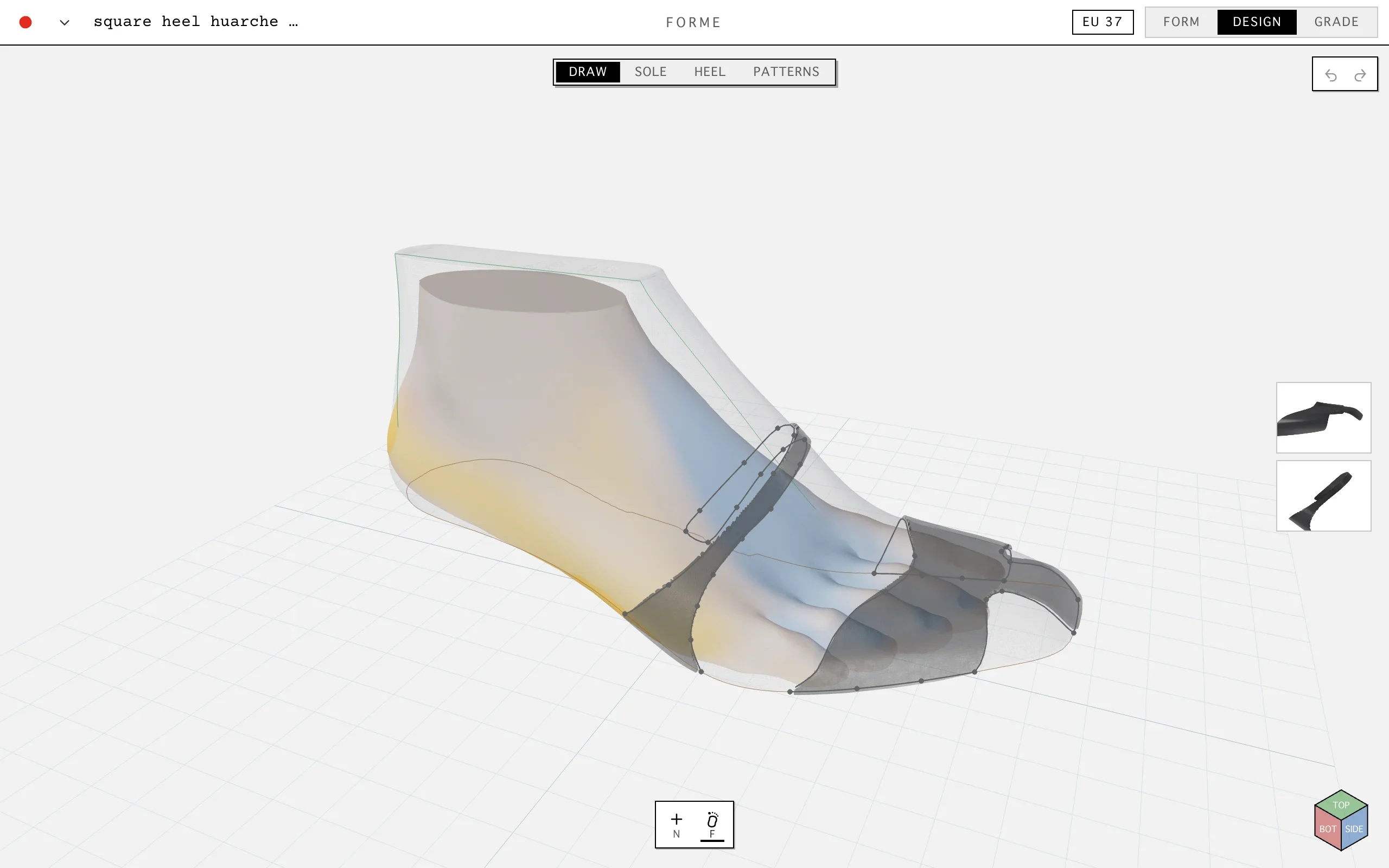

The foot of the size fitted inside the last, coloured by how much room it has
04The sole, layered

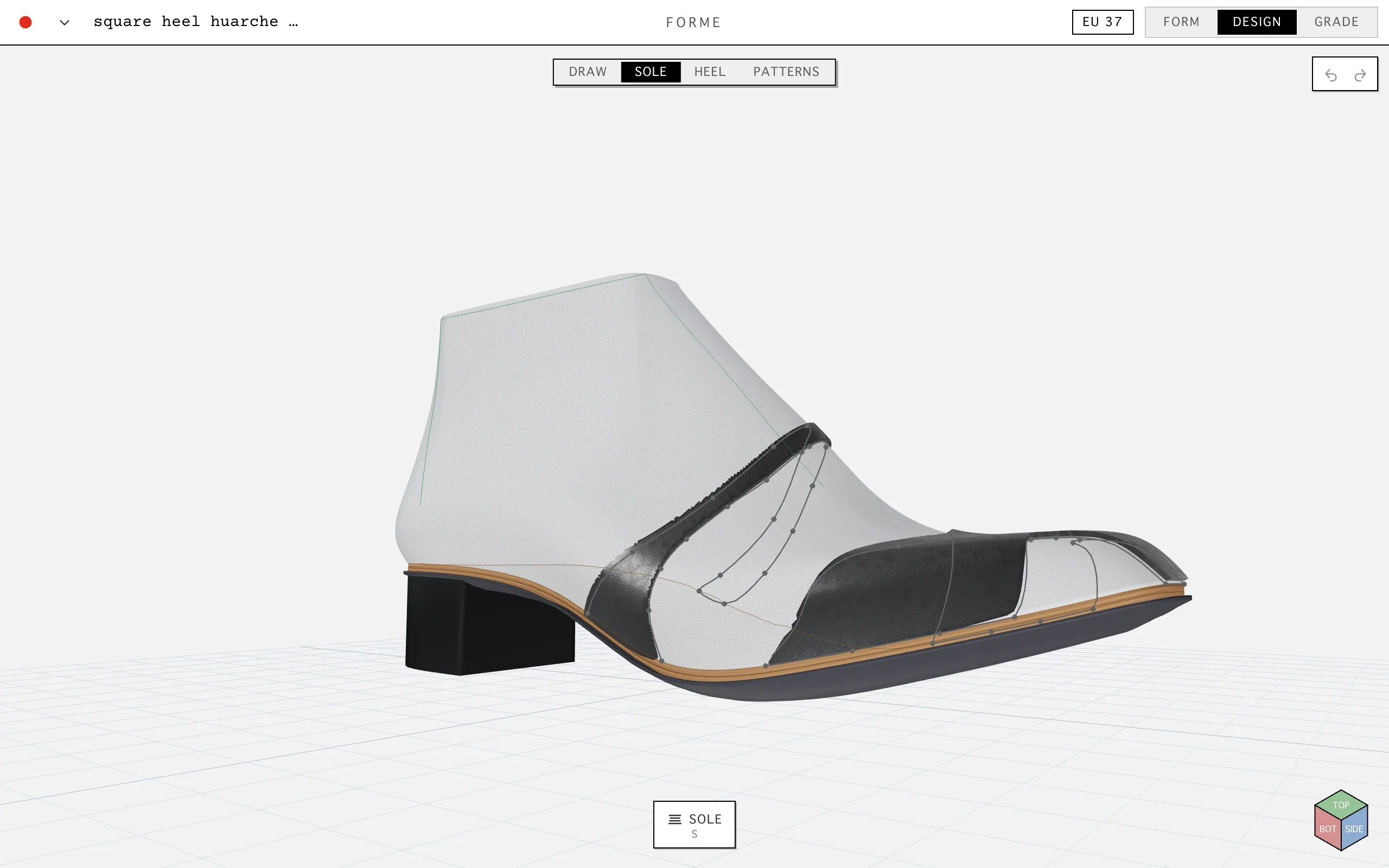

The sole in Sole: insole, filler, midsole and rand stacked under the last, the heel under them
05The heel

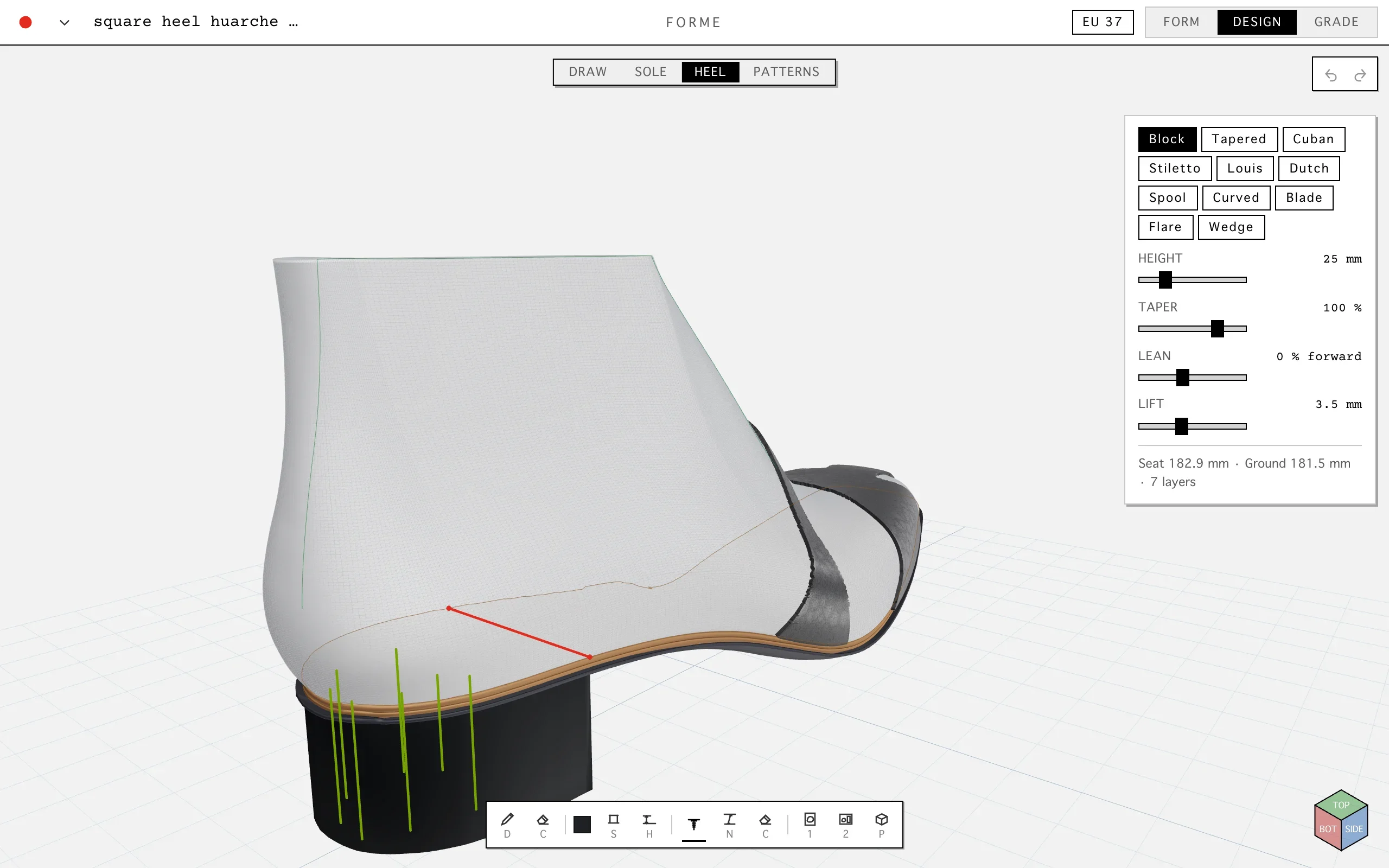

The heel in Heel, nailed and screwed on, with its shapes and its height beside it
06The pattern, flat

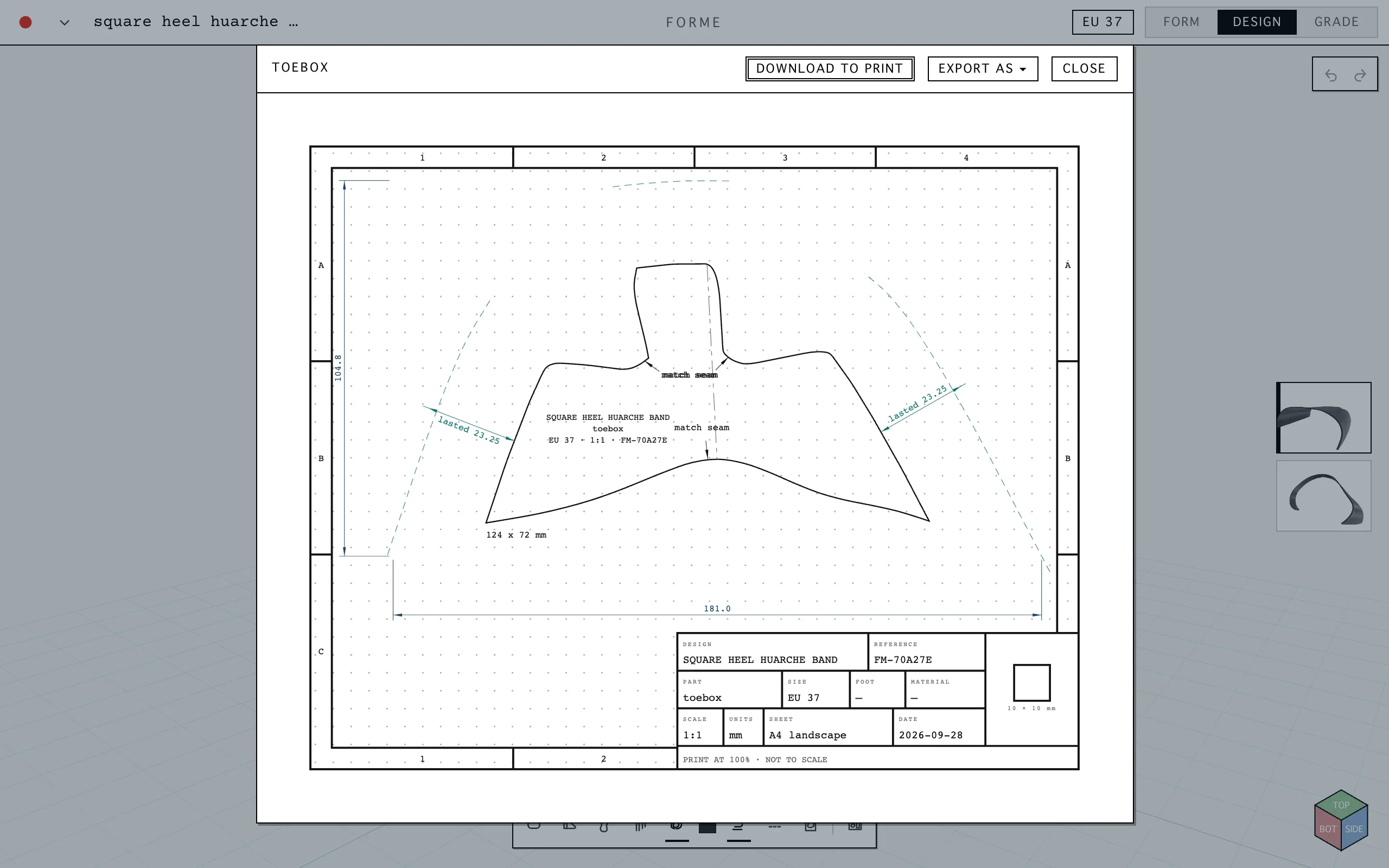

A piece flattened onto its sheet, with its lasting and seam allowances and its notches
07Graded to size

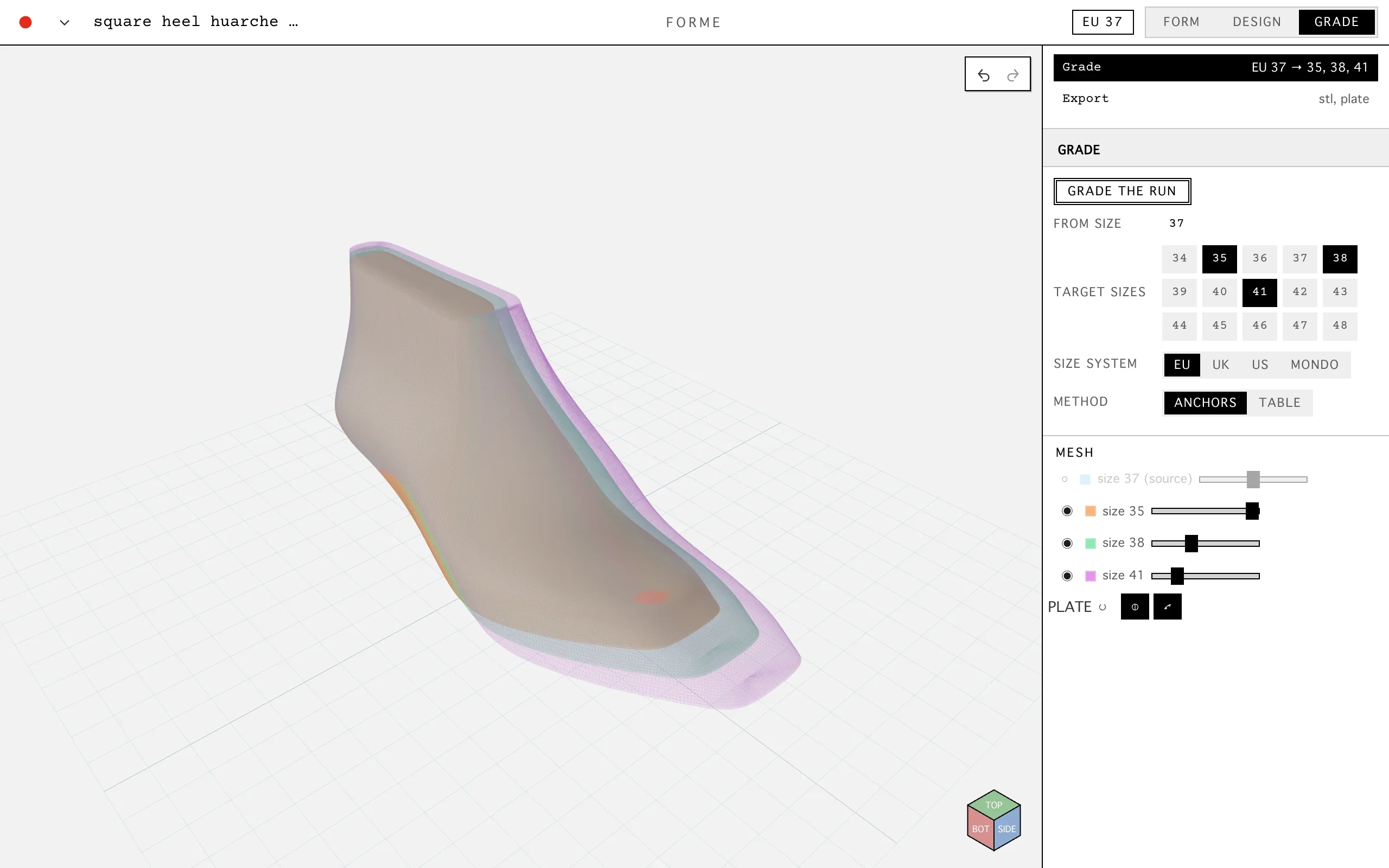

The size run in Grade, each larger size a shell round the one before it
08Ready to print
The heel seat at full size on its sheet, with the choice of a PDF to print or a file to cut
